NE SERIES BUCKET ELEVATOR

NE series chain elevator is a kind of advanced vertical lifting equipment in domestic, which has been widely used to lifting all kinds of material, such as: ore, coal, cement, cement clinker, grain, chemical fertilizer, etc. NE series chain bucket elevator mainly composed of operating parts, driving device, the upper device, central casing, the lower unit.

The performance and characteristics of NE series chain elevator：

Big lifting capacity: take flow-through feeding type, strategy induction discharge type, and conveying by intensive decorate large capacity hopper, with low chain speed, big lifting capacity range of 15-800 m3 / h.
Small drive power: no back and dig phenomenon when lifting the material, therefore less reactive power.
Wide lifting range: can lifting powder, granular, lump materials, and material and temperature ≤250 ℃
High lifting height: low chain speed, stable operation and adopts the plate chain high strength wear resistant chain, so lifting height can up to 40 m.
Long service life: the service life of the conveyor chain is more than five years.
Good reliability: advanced design principle ensure the reliability of the running of machine. Time between failures is more than 30000 hours.

Silo Feeding System

Model	Lifting Capacity （m3/h）	Material Max.Lumpiness
		The Percentage（%）
		10	25	50	75	100
NE15	15	65	50	40	30	25
NE30	32	90	75	58	47	40
NE50	60	90	75	58	47	40
NE100	110	130	105	80	65	55
NE150	165	130	105	80	65	55
NE200	220	170	135	100	85	70
NE300	320	170	135	100	85	70
NE400	440	205	165	125	105	90
NE500	470	240	190	145	120	100
NE600	600	240	190	145	120	100
NE800	800	275	220	165	135	110

TDG SERIES BUCKET ELEVATOR

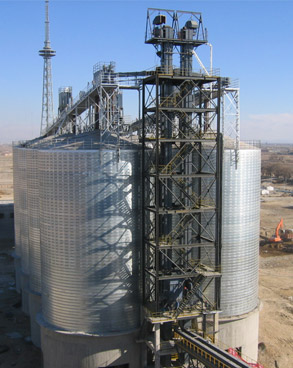

TGD type belt bucket elevator is a new generation advanced elevator globally. TGD elevator especially suits for vertical lifting of dry powder material or small granular materials, etc in industries of building materials, metallurgy, chemical, food, electricity industry and others. It’s an ideal lifting products for the raw material of NSP cement plant, raw material homogenization silo, cement storage silo.

The performance and characteristics of TDG series chain elevator：

High lifting height: highest height of single machine can up to 100 m.
Big capacity: the biggest capacity can up to 950 m3 / H.
Materials temperature requirement: up to 120°.
The bucket allocation are intensive, continuous materials receipt and and continuous materials discharge.
Long service life: good reliability, trouble-free time is more than 60,000 hours.
low power consumption: save energy consumption by more than 30% compared with chain elevator for its low machine weight.
Low maintenance cost: with convenient operating and maintenance and less wearing parts, the maintenance cost is reduced by around 80% compared with normal elevator.
With high accuracy design, high strength structure and beautiful appearance.

Models Specifications			TGD 315P	TGD 315	TGD 400	TGD 500	TGD 630	TGD 800	TGD 1000	TGD 800	TGD 1000	TGD 1250	TGD 1400	TGD 1600
Bucket Specifications	Bucket Width（mm）		315	400	400	500	630	800	1000	800	1000	1250	1400	1600
Bucket Specifications	Bucket Volume（dm3）		6.6	10.0	14.5	18.0	29.3	37.3	46.6	46.0	58.0	72.7	99.0	114.0
Bucket Speed（m/s）			1.31		1.50		1.6			1.98
Diameter of Cylinder（mm）			630		800		1000			1250
Theoretical Capacity （m3/h）	Space Between Buckets（mm）	280	111	168
		320	97	147	244	303
		360	86	131	217	270	460	585	731
		400			195	243	414	527	658	815	1028	1289
		440			178	221	376	479	598	741	935	1172	1596	1837
		480					345	439	548	679	857	1074	1463	1684
		520					318	405	506	627	791	992	1350	1555
		550					301	383	478	593	748	937	1277	1470
