CLINKER SILO SYSTEM

CLINKER SILO SYSTEM

Brief

Clinker is particle type as raw materials for milling cement. Clinker from production plant is very high temperature thus not applicable for using steel silo for storage. While cooled clinker for cement milling plant and clinker transit center are stored by steel silos.

The unloading of the clinker is by gravity, the silo thickness and structure design considers the particle clinker wearing allowance.

Share With:
Customer needs survey

Introduction

Clinker Silo Introduction

  • Each of SRON project is a turn-key solution. Our experienced engineers team will be beside with you to design and construct the most suitable, dependable and economical project through the whole process of project feasibility study, analysis, construction, maintenance and operation.
  • Be your clinker silo system used for cement mill plant, clinker transit center or others, our expertise experienced team will furnish you professional practical solution while considering your special requirement of investment, available land, local geographic and climate situations.
  • And the whole silo system generally includes: clinker feeding system, clinker discharging system, bulk truck loader system, bag packing system, packed bag palletizer or truck loading system, dust collector system, PLC control system, and related steel structures and platforms with details as following shown.

Details

Clinker Silo Details

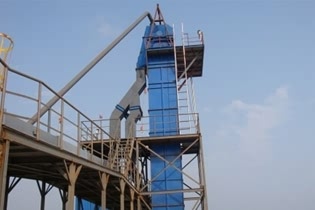

  • Bucket Elevator Feeding SystemBucket Elevator Feeding System

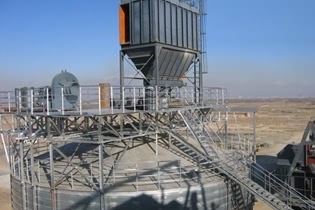

  • Dust Collector SystemDust Collector System

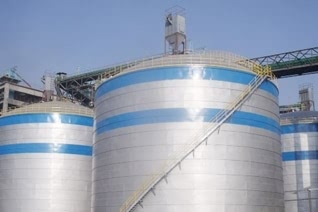

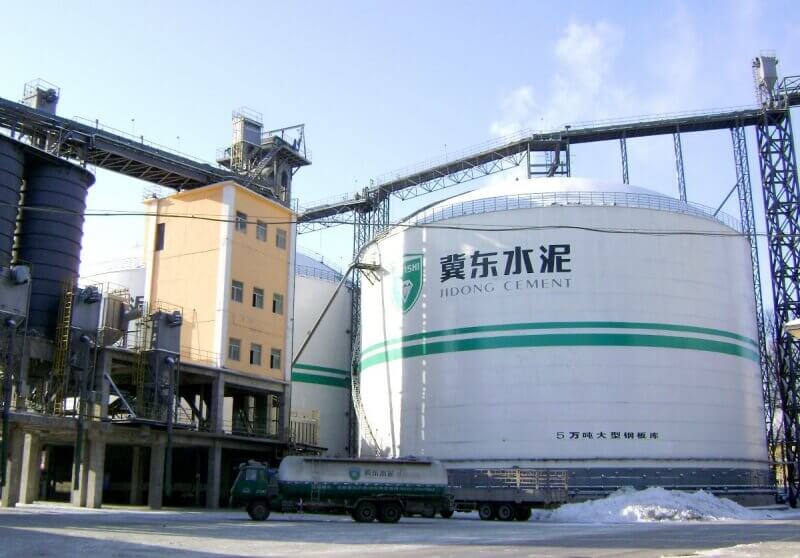

  • Clinker SiloClinker Silo

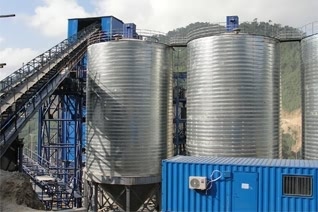

  • Clinker Silo DesignClinker Silo

Features Of Cement Clinker Silo

1.There is buffer design inside the silo hooper bottom, so the cement in the silo will discharge automatically due to the gravity.
2.The supporting legs are made of seamless tube, which has good bearing, can withstand 8degree earthquake, typhoon 35meters per second.
3.2 kinds of angles-45 degree and 60 degree, among which the 60 degree conical-bottom is usually used to store larger pellet and powder materials which must be dry.
4.The coating is expoxy paint, which is of Strong adhesion of inorganic materials such as cement, metal; Very corrosion resistant coating itself; Good mechanical properties and wear resistance, impact resistance; Can be made without solvent or high solid coatings; Organic solvent resistance, heat resistance, water resistance; Coating non-toxic. Also it could be galvanized.
5.It is conected with bolts and screws and nuts, assembled and easy maintenance.

Advantages Of Clinker Silo

1. Good sealing structure with triple sealing-- t-flange, special sealing strips, glass sealant, and the clips on the screw.
2. Industrial production with high degree of standardizaton, which components could be installed on site.
3. High level bolts used when install the silo, making the installation firm and easy and efficiently, and mostly shorten the construction time.
4. Easy operate. The bolted silo is equipped with relevant accessories, such as: conveyor, dust collector, relief valve, and monitoring devices, etc. which ensures the quality and safety of the material stored in the silo.
5. Simply maintanance. There is a manhole on the hooper bottom cone, and top rail on top of silo, also with the accessories like level indicators, all these make the maintance of the silo brief.
6. Low cost and long tenure of use. The cost of bolted silo is just around 25% of the galvanized steel grain silo with the same specification; and its life span can reach 30 years.
7. SRON hopper bottom steel silo capacity could be from 10tons up to 3000tons, and can accept customized orders with high stock of 50tons, 100tons, 150tons, 200tons and 500tons cement silo.

Clinker Silo Why Choose SRON

For Clinker Silo System in China, SRON is an ideal choice. We has been appraised as Member of China steel silo industry, research center of bulk cement equipment industry and qualified contractor for China National Reserve. Further with our advanced manufacturing craftsmanship and deep experience, SRON has been appointed Contractor for China Bulk Cement Silo Association. What’s more, SRON is China Leading turn-key solution contractor for bulk material storage technology silo system and high strength steel structure.
If you select the Clinker Silo System from SRON, you will get the affordable machines. What the most important is that we will recommend the most suitable silo for you.
