As the logistics and transportation industry continues to demand greater efficiency and intelligence, rapid loading systems, as a key technology for efficient, precise, and environmentally friendly bulk material loading and unloading, are gaining increasing attention. Especially in the transportation of bulk materials like coal, ore, grain, and chemical raw materials, the rapid, quantitative control capabilities of train and truck loading systems have become a key indicator of a loading station's modernization.
Overview of the Rapid Quantitative Train Loading System

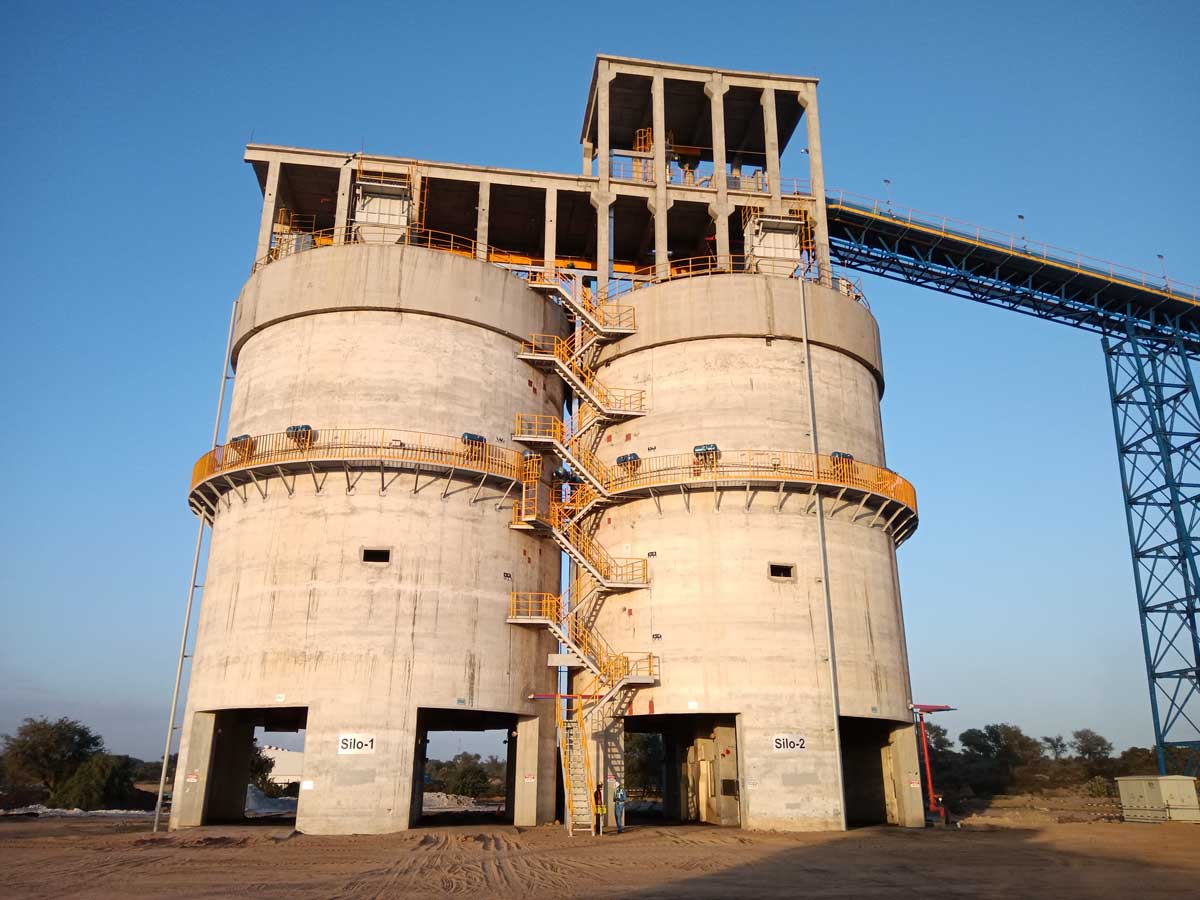

The Rapid Quantitative Train Loading System is a comprehensive metering and loading device integrating mechanical, hydraulic, and electrical automation controls. Its features of rapid loading, continuous weighing, and precise control have earned it widespread application in industries such as coal mines, ore distribution centers, and ports.
Utilizing an advanced automated control platform, the system coordinates the hopper, conveying system, weighing equipment, and hydraulic devices to achieve continuous, quantitative, and efficient loading of train cars. This ensures that each car's material load reaches the designated weight with minimal error, significantly improving transportation efficiency and resource allocation.
1. System Structure
The rapid quantitative wagon loading system primarily consists of the following core components:
Steel structure tower: The main structure supporting the hopper, loading chute, and other equipment;
Loading equipment: Such as the chute, gates, and guide plates, which can be adjusted according to the vehicle's movement;
Weighing system: Dynamically weighs and controls the material quantity during loading;
Hydraulic system: Controls the movement of key actuators such as the loading arm and gates;
Electrical control system: Provides power distribution and command execution;
Computer control system: Performs logical operations, process control, data acquisition, and remote monitoring.
2. Technical highlights and advantages
(1) Intelligent dust suppression system
The system integrates intelligent dust suppressant spraying technology and can automatically adjust the spraying amount according to the real-time dust concentration. Its liquid system is highly integrated with the spraying control system, and has the ability to resist freeze-thaw and wind erosion, adapt to harsh working conditions, greatly improve the working environment and reduce dust pollution.
(2) Train leveling and compacting device
The loading system is equipped with an intelligent train leveling and compacting device, which can automatically level and compact during the loading process to avoid uneven loading causing material tilting or waste. The device shortens the time of the leveling operation that originally required manual operation and took a long time from 4 hours to less than 1 hour, greatly improving work efficiency.
(3) High-precision dynamic measurement
The system uses high-speed weighing sensors and intelligent algorithms to weigh the flowing materials in real time, automatically controlling the loading weight of each carriage, ensuring that the measurement error is controlled within a very small range (generally less than ±0.5%), and significantly reducing overloading and underloading.
(4)Automatic Control and Remote Monitoring
The system supports PLC automatic control and computer centralized monitoring. Operators can view real-time information such as loading progress, material weight, and equipment status in the central control room, and can also start and stop the system with one button and export data, facilitating management and optimizing scheduling.
Main parameters of the rapid quantitative wagon loading system
| Single suit loading capacity |
Loading form |
Effective capacity of Surger Bin |
Effective capacity of Weigh Bin |
Applicable train models |
Loading speed |
Weighing accuracy |
| ≥5500t/h |
single bin and single rail (single bin and double rail, double bin and double rail) |
≥300 tons |
≥100 tons |
professional design based on the user’s actual train models to meet the user’s loading requirements |
≤50 seconds/section (C80), the loading time for a whole train is less than 1 hour |
static weighing accuracy ± 0.5% |
Overview of the Rapid Quantitative Truck Loading System

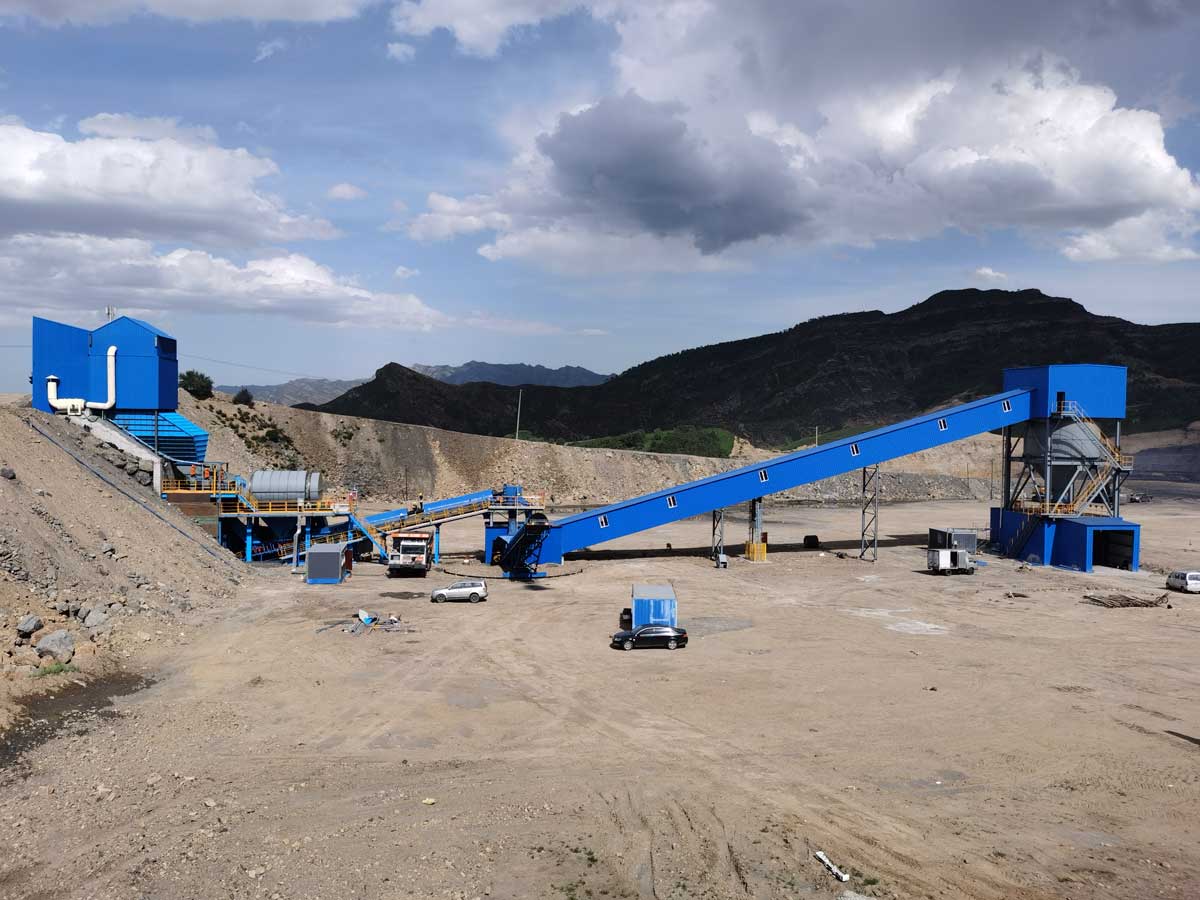

The Rapid Quantitative Truck Loading System is an automated loading technology that integrates weighing, batching, and loading, using a large hopper scale as its core. Compared to traditional manual loading methods, this system can accurately load trucks with quantitative materials in a short time, significantly improving loading efficiency and accuracy.
The system pre-weighs and batches materials in the weighing bin. When the truck arrives at the loading station, it controls the unloading gate and adjustable loading chute to quickly direct the materials into the truck compartment, achieving "one truck, one control, and quantitative loading."
1. System Structure
The system primarily consists of the following components:
Large steel tower structure: supports the weighing bin, control system, and conveying equipment;
Weighing system: includes an electronic hopper scale and load cells, enabling pre-weighing of materials;
Batching system: automatically adjusts the batching ratio based on the set target loading weight;
Unloading and guiding system: precisely controls the unloading gate and retractable chute, improving loading speed and uniformity;
Electronic control and software system: performs data acquisition, control execution, and record management.
2. Technical Advantages
(1) Pre-batch + Precise Weighing Mechanism
Before the truck arrives, the system has already completed the material batching of the target weight in the weighing bin. The material is released through the precisely controlled unloading gate, ensuring that each truck can be quickly and accurately loaded, effectively solving the problems of repeated adjustments and overloading that occur in traditional loading.
(2) Efficient Loading Speed
Since the material in the silo has been measured, once the truck is in place, the system can complete loading within a few minutes, reducing waiting time. It is suitable for logistics scenarios with high frequency of entry and exit and continuous transportation.
(3) High degree of automation
Combined with PLC + human-machine interface (HMI) design, users can set loading parameters, monitor operating status, and print loading documents in the control system, improving operation transparency and data traceability.
Main parameters of the rapid quantitative automobile loading system
| Loading capacity |
Buffer silo capacity |
Measuring accuracy of equipment |
Loading accuracy |
Loading speed |
Adaptation models |
| 2500-3500t/h |
200 t |
±0.5% |
< ±0.5 % |
≤120S / per cycle |
various truck models |
System Application Scenarios
Both the train loading system and the truck loading system are suitable for the following locations:
Coal mines and mining enterprises: for bulk transport of materials such as coal, iron ore, and copper;
Port terminals: for logistics transfer between ships and trains;
Large logistics distribution centers: for material distribution and transfer, reducing manual intervention;
Power plants, chemical plants, and grain storage stations: for precise batching and quantitative delivery, improving safety and efficiency.
As a crucial component of bulk material transportation, rapid loading and unloading systems, through their intelligent, efficient, and high-precision design, significantly reduce labor and time costs while also improving the safety and environmental performance of material loading. In the future, with the continuous advancement of industrial automation and information technology, rapid quantitative loading systems will further evolve towards intelligent sensing, remote collaboration, and environmentally friendly features, becoming a key component of modern bulk logistics systems.
